Aqua Tech Solutions: Pure Water, Generated from Air

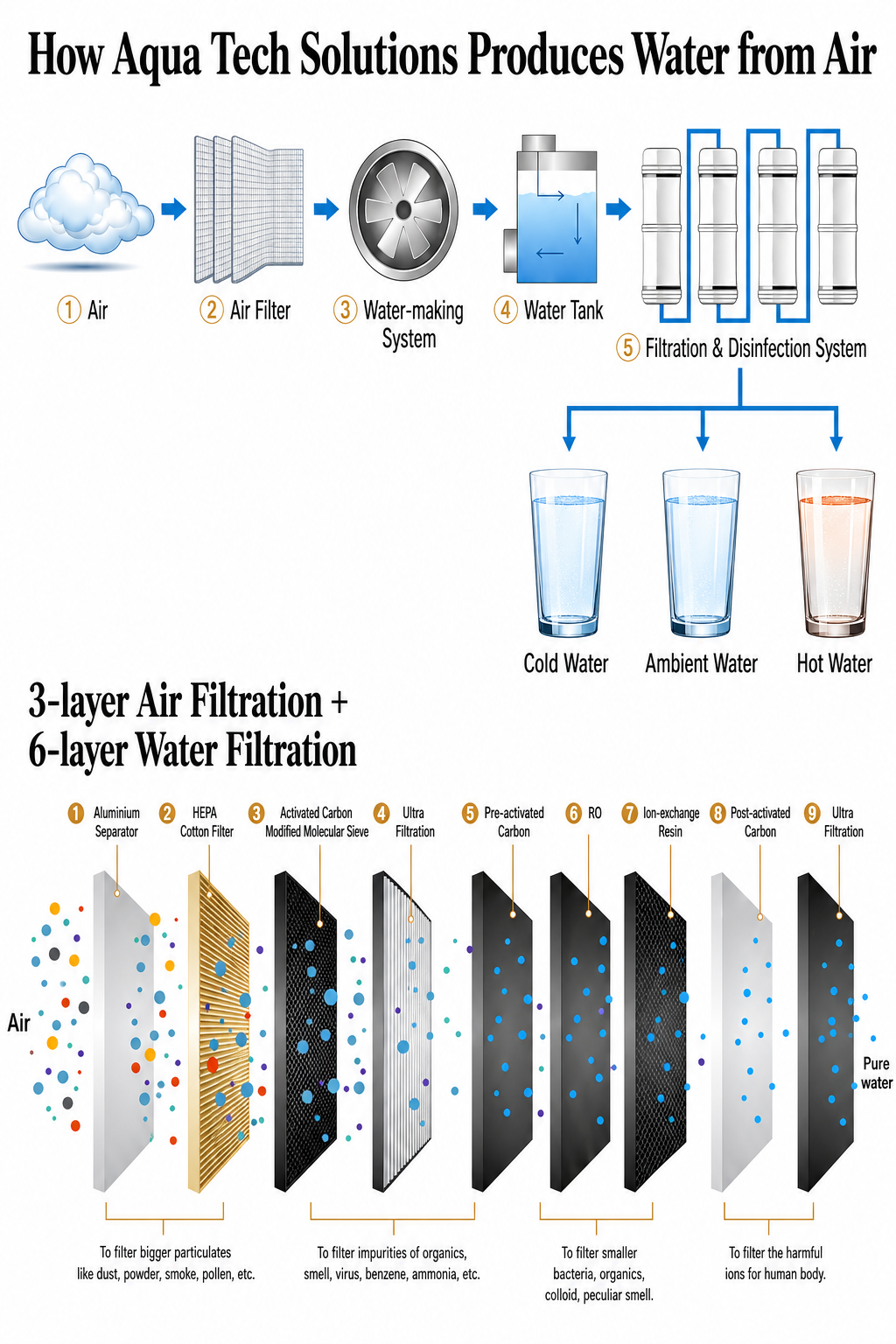

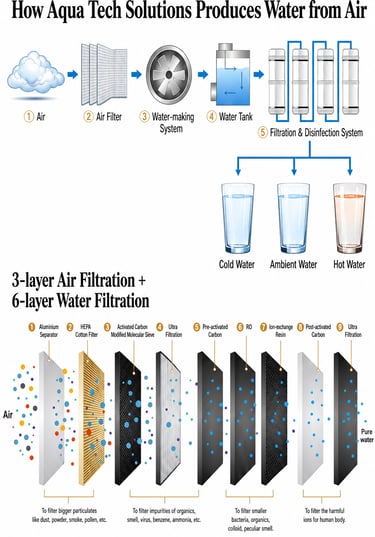

The Big Picture: Our 5-Step System

​Our atmospheric water generation (AWG) system follows a logical, closed-loop process to capture, filter, and cool humidity into safe water.

​① Air Inlet

The process begins when a powerful fan draws ambient air from the surrounding atmosphere into the unit.

​② High-Efficiency Air Filter

Before the water can be generated, the air itself must be cleaned. The air passes through our heavy-duty filters, immediately removing dust, pollen, and other large particles from the incoming air stream.

​③ Water-Making System (The "Heart")

The pre-cleaned, humid air enters our core generation unit. Here, it is instantly cooled below its Dew Point. This sudden temperature drop triggers the "Thermodynamic Condensation Cycle," forcing the humidity in the air to condense into large, heavy liquid water droplets, which drop into a collection basin. This is the same principle that creates dew on a cool morning, but optimized and controlled for pure water production.

​④ Water Tank

The freshly collected water is funneled into a specialized food-grade storage tank. It is now liquid water, ready for the crucial final stages.

​⑤ Filtration & Sterilization System

To ensure the highest quality drinking water, the collected water leaves the tank and enters our extreme ultra-purification and sterilization system (the detailed 9-stage process shown below), including final UV sterilization, before being served.

​Final Output

​You receive pure water at your fingertips, available as:

• ​Chilled Water for immediate refreshment.

• ​Room-Temp Water for drinking and cooking.

• ​Hot Water for tea and coffee.

​Deep Dive: The Detailed 9-Stage Purification Process

​To achieve "Ultra-Pure Water," we push the collected liquid through a rigorous 9-stage gauntlet that treats the water at a molecular level. We split the filtration into two major phases:

​Phase A: 3-Layer Air Filtration (The Clean Inlet)

​This phase cleans the air to make the water before condensation:

1. ​Aluminium Separator: Blocks the largest debris, insects, and initial airborne pollutants.

2. ​HEPA Cotton Filter: Captured fine particulates, including dust, smoke, and pollen.

3. ​Activated Carbon / Modified Molecular Sieve: Adsorbs gases and organic odors to ensure the incoming air is pristine and odorless.

Phase B: 6-Layer Water Filtration (The Ultra-Purification)

After the water is generated, it is relentlessly purified:

4. ​Ultra Filtration (UF): (The First Guard) Removes fine sediments and large impurities before they reach the main filters.

5. ​Pre-activated Carbon: Initial removal of organic compounds, taste, and odor.

6. ​RO (Reverse Osmosis): The heavy-lifting filter. It uses pressure to force water through a semi-permeable membrane, blocking bacteria, viruses, and dissolved solids.

7. ​Ion-exchange Resin: Softens the water and targets the removal of ions (such as specific heavy metals).

8. ​Post-activated Carbon: Polishes the final product to ensure excellent flavor and absolute clarity.

9. ​Final Ultra Filtration & UV: (The Final Guard) A redundant final filter and a strong UV-light chamber to eliminate 99.9% of bacteria and ensure residual sterility before dispensing.

​(Note: In our process, stages 8 and 9 work together as the final check.)

​The Result: Ultra-Pure Water

​When you use an Aqua Tech Solutions machine, you aren't just getting water from air; you are getting the purest, most technologically advanced water possible, tested and treated to be perfectly safe for your human body.

​Pure. Sustainable. On-Demand.
